NFD2-V200-3-2P

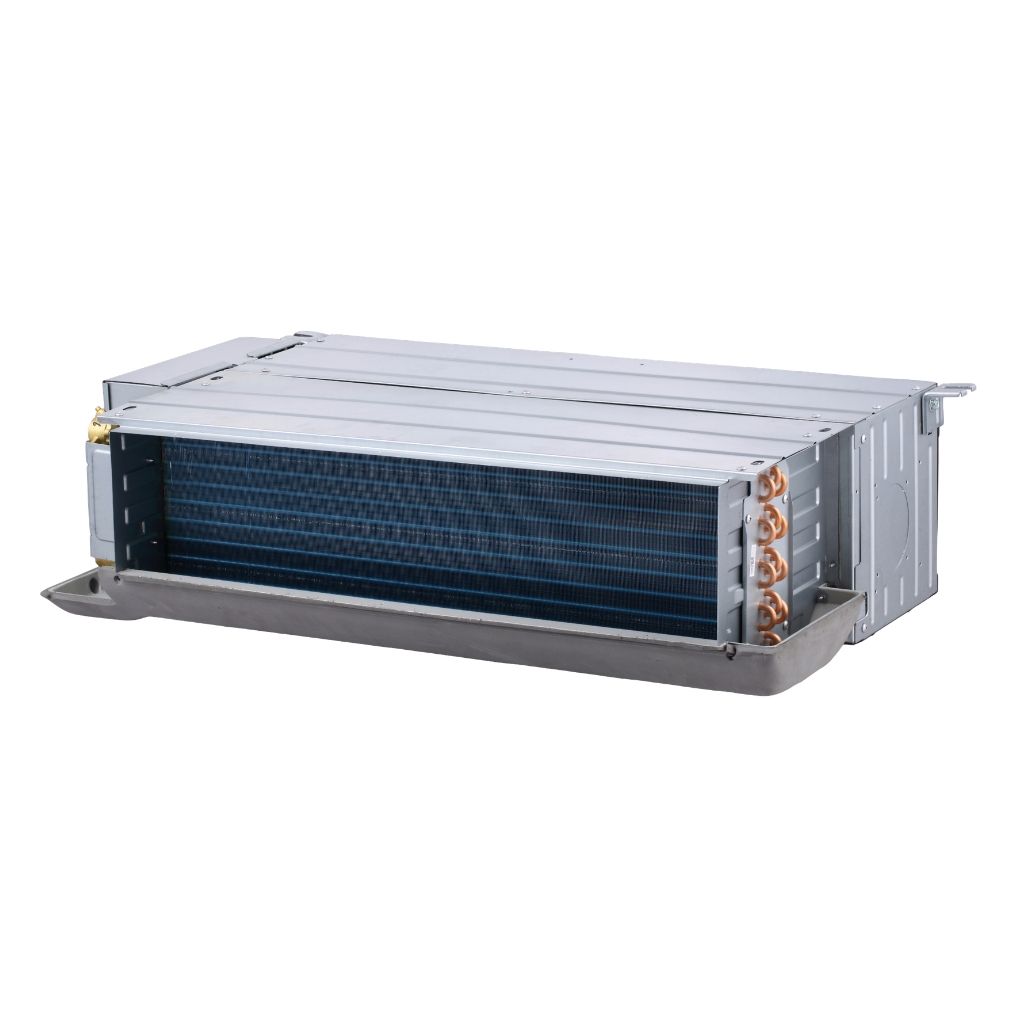

NFD2 Ducted

Clear

The new 2nd Generation ducted units combine greater installation flexibility, simplified connectivity and enhanced user convenience. Designed to adapt easily to different installation requirements, the new generation offers flexible piping and air inlet configurations, direct connection without an additional PCB Kit.

Call us
+370 37 373248
Ask us
Write us

Description

Main features

Advantages of the model:

The air inlet can be located on either the underside or rear
of the unit to accommodate differing installation scenarios.

A durable, iron-framed washable filter is supplied. Easy
removal and cleaning simplify routine maintenance while
helping to maintain efficient airflow and reliable unit
performance.

Thanks to the brushless DC fan motor, energy consumption is reduced by up to 30%.

Quiet operation while maintaining smooth and consistent airflow.

Fresh air intake option for improved indoor air quality.

Optional left or right-hand piping connections provide
greater installation flexibility, making it easy to adapt
the unit to different system layouts and site requirements

Designed to fit easily into restricted ceiling spaces.

New Control Solutions

With the new 2nd generation duct, installation is now even simpler. The unit connects directly without the need for any additional interface boards, eliminating the previously required PCB Kit and making installation faster, easier, and

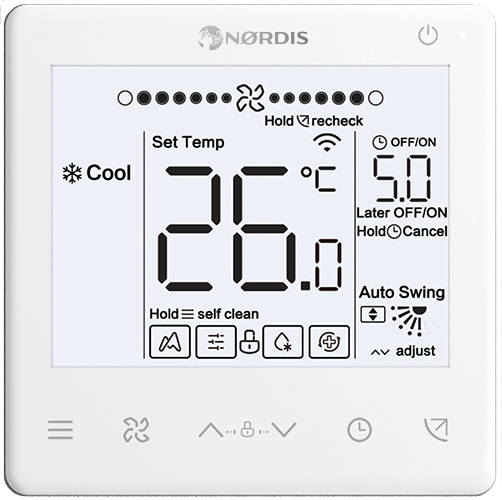

more cost-efficient. The 2nd generation ducted unit comes with a new controller
for easier, more intuitive system control (sold seperately).

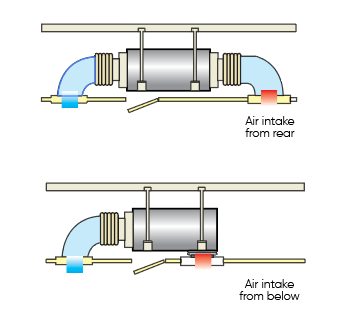

Flexible Air Inlet Port Installation

The air inlet can be located on either the underside or rear
of the unit to accommodate differing installation scenarios.

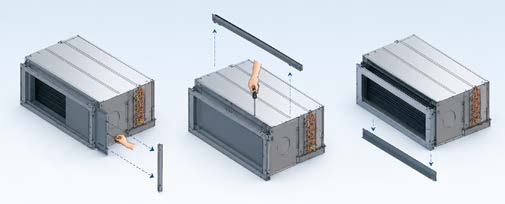

Washable Filters

A durable, iron-framed washable filter is supplied. Easy removal and cleaning simplify routine maintenance while helping to maintain efficient airflow and reliable unitperformance.

Documents

Here you can download all the most important documents related to this product and its use.

Technical data
pdf

Discover

  • NFD Ducted

    NFD Ducted
    2,2 kW
    3,2 kW
    4,1 kW
    4,5 kW
    5,9 kW
    6,7 kW
    8,0 kW
    9,8 kW
    Model: NFD-V200-4-2P
    Cooling capacity 2,22 kW
    Heating capacity 3,23 kW
    Sound pressure level 37,3 dB(A)
    DC fan motor Yes
    Model: NFD-V300-4-2P
    Cooling capacity 3,19 kW
    Heating capacity 4,5 kW
    Sound pressure level 39,6 dB(A)
    DC fan motor Yes
    Model: NFD-V400-4-2P
    Cooling capacity 4,06 kW
    Heating capacity 5,6 kW
    Sound pressure level 41,1 dB(A)
    DC fan motor Yes
    Model: NFD-V500-4-2P
    Cooling capacity 4,46 kW
    Heating capacity 6,25 kW
    Sound pressure level 44,8 dB(A)
    DC fan motor Yes
    Model: NFD-V600-4-2P
    Cooling capacity 5,87 kW
    Heating capacity 7,72 kW
    Sound pressure level 46,1 dB(A)
    DC fan motor Yes
    Model: NFD-V800-4-2P
    Cooling capacity 6,65 kW
    Heating capacity 8,36 kW
    Sound pressure level 47,4 dB(A)
    DC fan motor Yes
    Model: NFD-V1000-4-2P
    Cooling capacity 7,98 kW
    Heating capacity 11,55 kW
    Sound pressure level 50,4 dB(A)
    DC fan motor Yes
    Model: NFD-V1200-4-2P
    Cooling capacity 9,76 kW
    Heating capacity 11,76 kW
    Sound pressure level 50,7 dB(A)
    DC fan motor Yes
    This product has multiple variants. The options may be chosen on the product page
