FMA-14I2HD/DVO

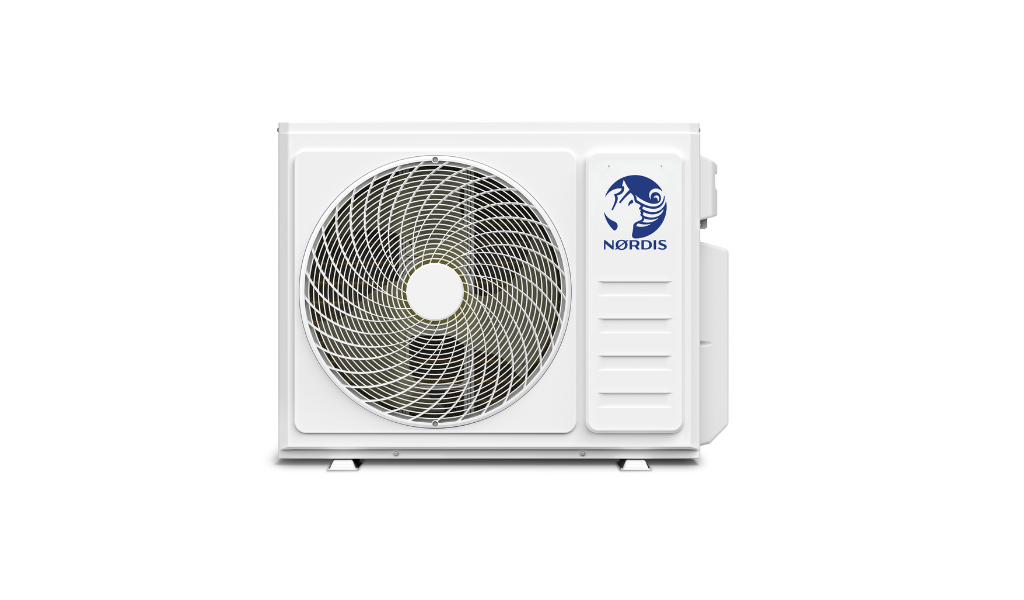

Outdoor FMA Multi Split
The NØRDIS FMA outdoor unit is the core component of the Multi Split system, designed to efficiently heat and cool multiple rooms at the same time. It ensures stable operation, high energy efficiency, and optimal performance in both residential and commercial spaces. A single outdoor unit can be connected to up to five indoor units, allowing the system to create a comfortable microclimate across several rooms while maintaining an elegant appearance and low energy consumption.
Using advanced inverter technology, NØRDIS FMA delivers powerful and efficient performance even under extreme conditions. The system maintains stable operation in temperatures ranging from -22 °C to +55 °C, making it ideal for both hot summers and cold winters. Each model is designed with different power capacities, providing flexibility in planning and installation.
All models use the eco-friendly R32 refrigerant, which improves system efficiency and reduces environmental impact. The units are built from fire-resistant and corrosion-proof materials, ensuring long-lasting reliability even in harsh outdoor environments.
Quiet operation, high performance, and intelligent energy management make the NØRDIS FMA outdoor units an excellent choice for modern Multi Split systems. Whether for a home, office, hotel, or commercial space, they guarantee reliable comfort, low operating costs, and sustainable climate control all year round.
- Description
Description
Product specification
FMA-27I3HD/DVO
Select another model
7,90 kW
Cooling capacity
7,96 kW
Heating capacity
A++/A+
Energy class
| Heating | Capacity | kW | 7,96 (2,45-8,80) |
| Consumption | kW | 2.1 | |
| Heating Rated Current | A | 10.1 | |
| SCOP | 4 | ||
| Energy efficiency class (moderate climate zone) | A+ |
| Cooling | Capacity | kW | 7,90 (2,80-8,80) |
| Consumption | kW | 2.63 | |
| Cooling Rated Current | A | 11.7 | |
| SEER | 6.1 | ||
| Energy Class | A++ |
| Power Supply | Power Cable | mm2 | 3×2,5 |
| Automatic Switch | A | 16 | |
| Power Supply | V/Ph/Hz | 220-240~/1/50 |
| Outdoor Unit | Dimension (WxHxD) | mm | 920×699×380 |
| Dimension of Package (WxHxD) | mm | 960×732×400 | |
| Weight netto/brutto | kg | 42/45 | |
| Air Flow Volume | m3/h | 3000 | |
| Sound Pressure Level 1m distance | db(A) | 55 | |
| Sound Power Level | db(A) | 67 | |
| Cooling Operation Ambient Temperature Range | °C | -15~53 | |
| Heating Operation Ambient Temperature Range | °C | -22~30 |
| Connection Pipe | Refrigerant liquid | R32 | |
| Refrigerant Charge R32 | kg | 1.5 | |
| Additional amount of Refrigerant | g/m | 15 | |
| Track length without additional Refrigerant "The standard length of liquid pipes pre-filled with refrigerant." | m | 5 | |
| Max. Distance Length | m | 15 | |
| Max. Elevation | m | 10 |
| Other | Number of indoor units | 1-3 |
Main features
Advantages of the model:
Compatible with up to five indoor units
Inverter compressor for stable and efficient performance
Works in temperatures from -22 °C to +55 °C
Uses R32 eco-friendly refrigerant
Durable and corrosion-resistant construction
Quiet and reliable operation for long-term use

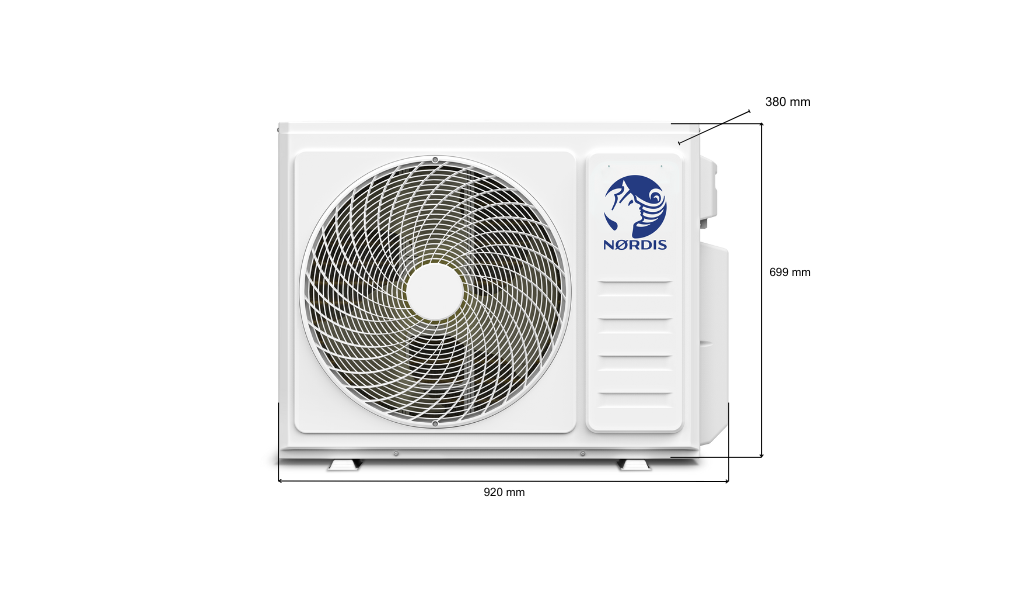

Device dimensions
View exact unit dimensions to ensure easy planning and installation.
