ORION PRO

COMING SOON

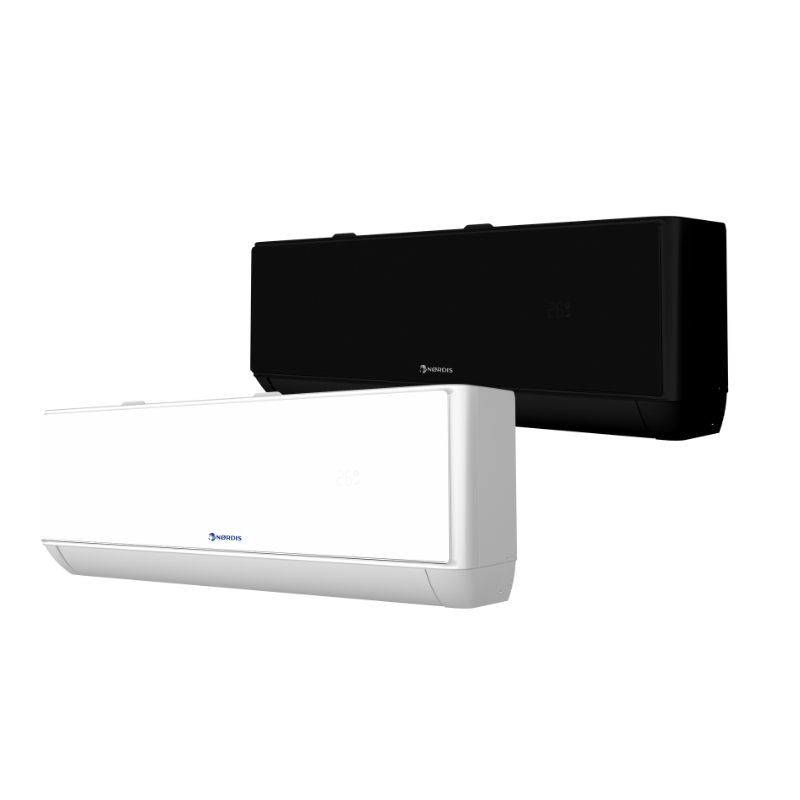

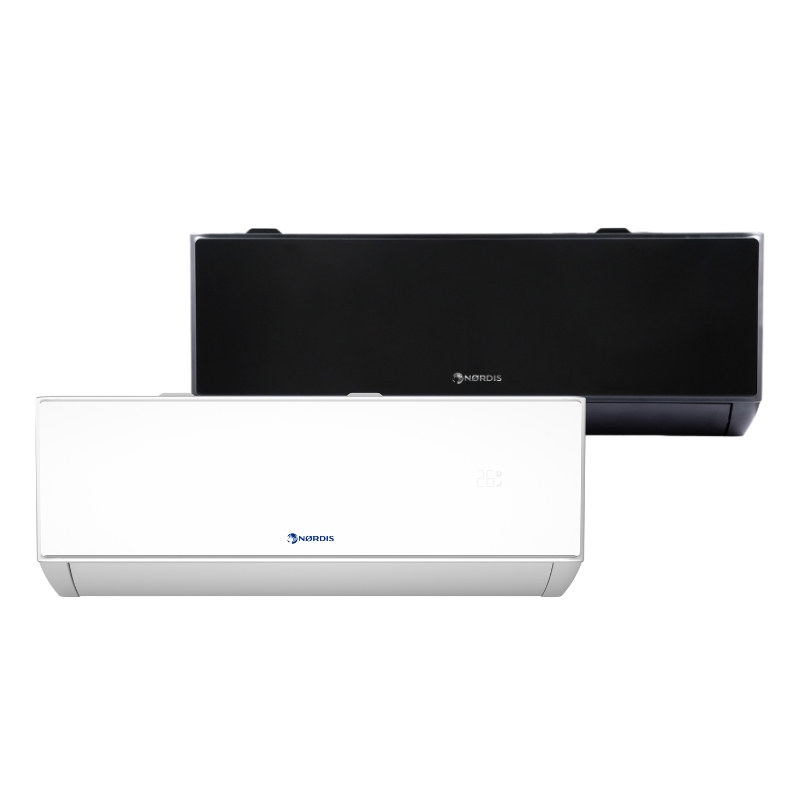

NØRDIS ORION PRO is a new generation inverter air conditioner-heat pump. This is an improved version of the ORION series with the latest technical solutions.

Split type inverter is dedicated for cooling and heating mainly residential apartments and houses but may be installed in offices too. NØRDIS ORION PRO has a built-in Wi-Fi module, plasma ionizer and second-generation I FEEL function and many other innovative features that serve the best comfort of the owner.

The updated set of device components has further reduced energy consumption. ORION PRO surpassed the original ORION series in energy efficiency. The air conditioner cools faster and sets the optimal room temperature for you.

In response to the needs of customers in the Nordic countries, the heating function in the NØRDIS ORION PRO series is further adapted to efficient operation when the outdoor temperature drops to -25 ° C.

Also, it uses eco-friendly refrigerant R32 and comes in a brand new fire-proof electric box.



  • The latest inverter compressor provides efficient operation over a temperature range of -25 ° C to + 53 ° C.
  • Wi-Fi module for air conditioning control via Smartphone (Android, iOS).
  • Ozone-safe high-performance eco-friendly refrigerant R32.
  • Adapted to work on heat in northern countries.

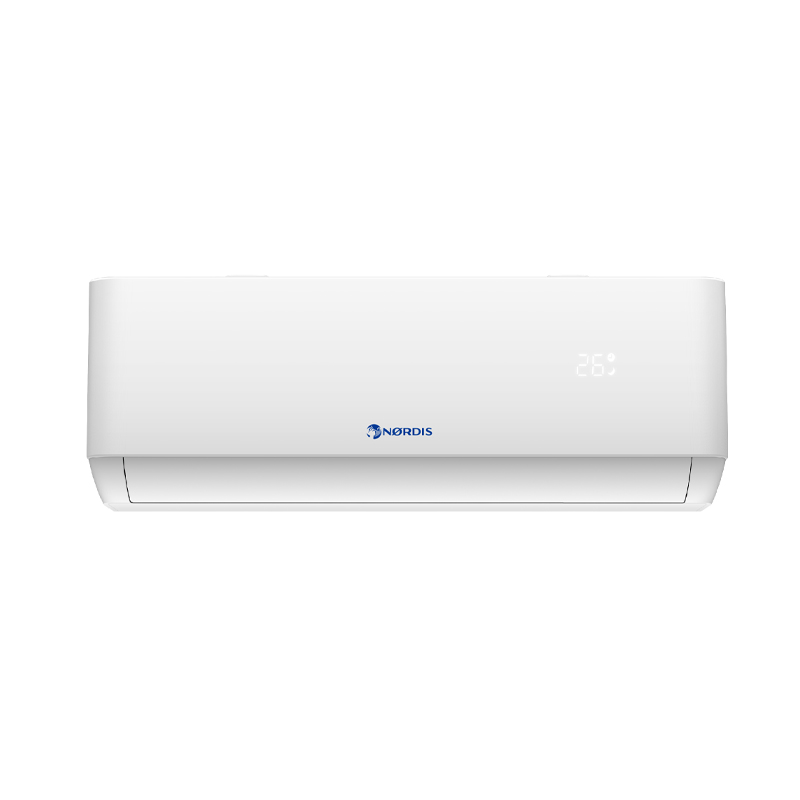

  • Stylish LED display on the panel of the indoor unit.
  • NØRDIS ORION PRO is equipped with High-Density Filters to filter more dust and pollen from the air.
  • I FEEL gives intelligent temperature control where it is needed and provides a more comfortable environment.
  • Cold plasma air purifier kills the bacteria, microbes and other harmful particles.
  • Turbo cooling provides maximum airflow and performance for 30 minutes to rapidly cool a room. It also quickly cools down.
  • Cooling operation from -10 to 50o For those, who have rural dwellings: +8oC function that allows keeping a steady temperature.
  • Easier disassembly, which means faster maintenance, replacement of parts and washing.

Description

NORDIS ORION PRO INNOVATIVE SOLUTIONS IN A NEW SERIES

Cold Air Prevention

Timer

Turbo Button

Self-diagnosis

Auto Restart

Intelligent Auto Restart

Auto Clean

LED Display

Intelligent Defrosting

Dehumidifying

Comfortable Sleep Curves

I Feel

Healthy Filters

Energy Saving

8°C Heating

WiFi Control

Technical data

Model Orion Pro OP09TC1 Orion Pro OP12TC1 Orion Pro OP18TC1
Power Supply F/V/Hz 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P
Cooling Capacity, kW kW 2.6 (0.94~3.32) 3.3 (1.0~3.80) 5.0 (1.25-5.9)
Cooling Power Input (min-nom-max) kW 0.24-0.89-1.39 0.29-1.09-1.50  0.33-1.55-2.35
Cooling Current A 4.7 5.5 8.2
Rated Current A 4.7 5.5 8.2
ERR W/W 3.24 3.24 3.24
SEER W/W 6.1 6.1 6.1
Energy Class A++ A++ A++
Heating Capacity, kW kW 2.65 (0.94-3.38) 3.50 (1.00-3.91) 5.10 (1.25-6.08)
Heating Power Input (min-nom-max) kW 0.24-0.80-1.56 0.29-1.06-1.73 0.34-1.38-2.55
Heating Current A 4.4 5.3 7.2
Rated Heating Current A 4.4 5.3 7.2
COP W/W 3.73 3.71 3.71
SCOP W/W 4.00 4.00 4.00
Energy Class A+ A+ A+
 Wi-Fi +/- + + +

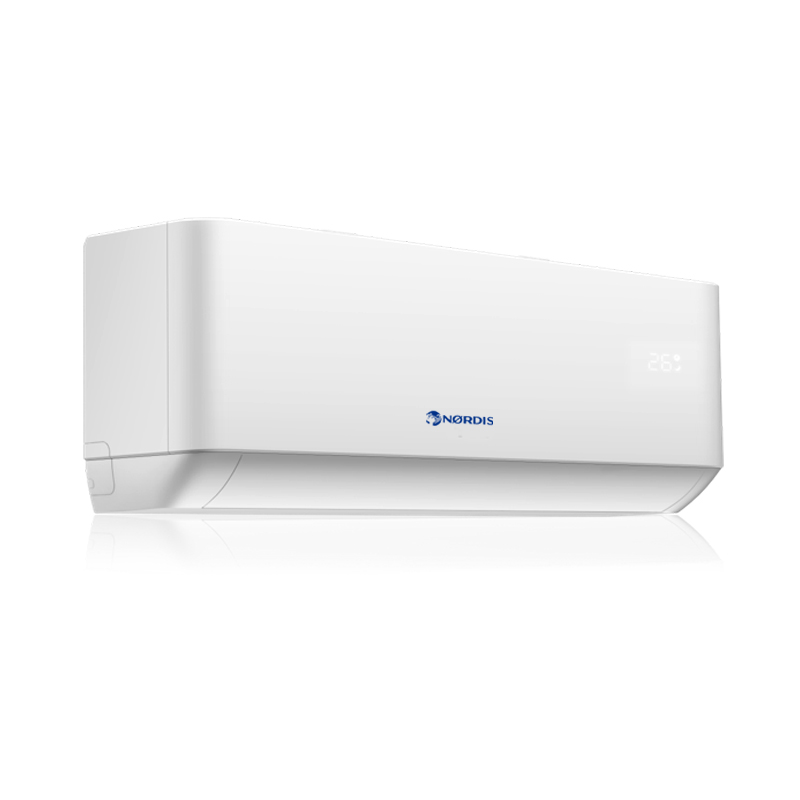

Indoor Unit
Dimension (WxHxD) mm 790x275x192 790×275×192 920×306×195
Dimension of Package (LxWxH) mm 860×345×265 860×345×265 990×380×265
Weight netto kg 8.5 8.5 11
Weight brutto kg 10.5 10.5 13
Air Flow Volume m3/h 560/560 560/560 820/820
Sound Pressure Level db(A) 52/47/43/35/32 52/47/43/35/32 54/50/47/43/36

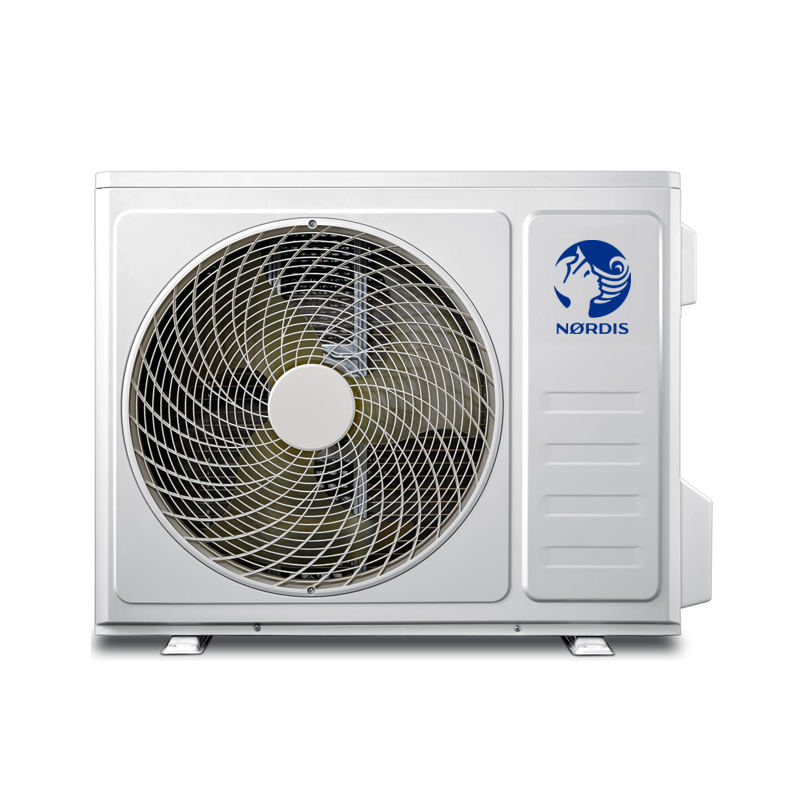

Outdoor Unit
Dimension (WxHxD) mm 795×549×305 795×549×305 853×602×349
Dimension of Package (LxWxH) mm 835×340×585 835×340×585 890×628×385
Weight netto kg 25 25 35
Weight brutto kg 28(w/o pipe), 29(w/i pipe) 28(w/o pipe), 29(w/i pipe) 38(w/o pipe), 39(w/i pipe)
Air Flow Volume m3/h 2200 2200 2600
Sound Pressure Level db(A) 52 52 55
Connection Pipe Refrigerant Liquid Pipe/Refrigerant Gas Pipe, R32 inch/mm 1/4”-3/8″/ (Ø6.35-Ø9.52)  1/4”-3/8”/ (Ø6.35-Ø9.52)  1/4”-3/8”/ (Ø6.35-Ø9.52)
Refrigerant Charge kg 0.7 0.7 1
Additional Refrigerant g/m 15 15 25
Max. Distance Length m 25 25 25
Max. Elevation m 10 10 10
Power Cable Power Cable mm2 3×1,5 3×1,5 3×1,5
Automatic Switch A 16 16 16
Communication Cable mm2 4×0.75 4×0.75 4×0.75
Cooling Operation Ambient Temperature Range °C -15~53 -15~53 -15~53
Heating Operation Ambient Temperature Range °C -25~30 -25~30 -25~30
