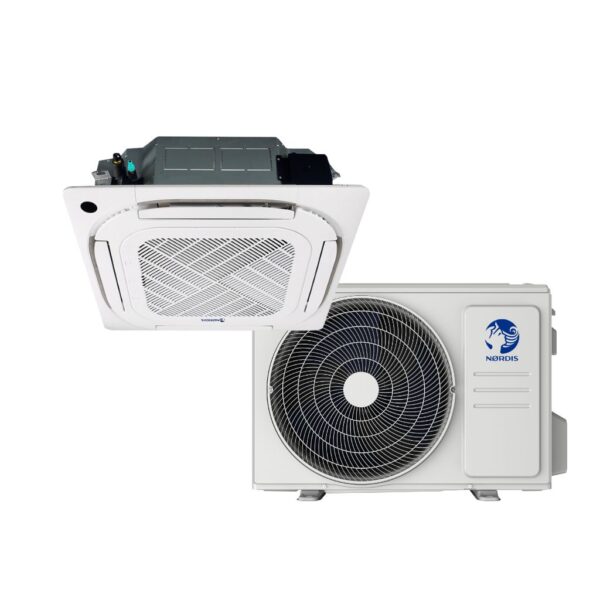

Four-way cassette

The NØRDIS NIC-NOA air conditioner models distribute the air over a wide 360º range, making them ideal for use in large spaces.
The range of cassette air conditioners offers a wide choice of sizes and capacities, including compact yet powerful models that fit well in even the most delicate interiors.

Price List*

Write us

Call us

*Prices are specified without installation works.

Model	NIC-NOA 12
Cooling	Capacity, kW	kW	3.52(0.85~4.11)
Input	W	1010（168~1434)
Current	A	4.45（1.32~6.31)
SEER		6.6
Heating	Capacity, kW	kW	3.81(0.47~4.31)
Input	W	1019（124~1376)
Current	A	4.73（1.04~6.07)
SCOP		4.1
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	570x570x260
Packing Dimension (WxDxH)	mm	662x662x317
Panel Dimension (WxDxH)	mm	647x647x50
Panel packing dimension (WxDxH)	mm	715x715x123
Net/Gross weight	kg	16.3/20.4
Panel Net/Gross weight	kg	2.5/4.5
Air flow	m3/h	620/510/420
Sound pressure level	dB(A)	41/36/33/25.5
WIFI		Optional

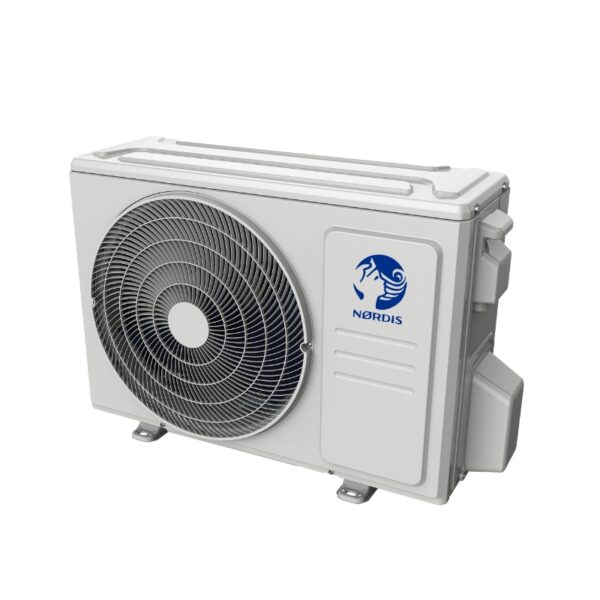

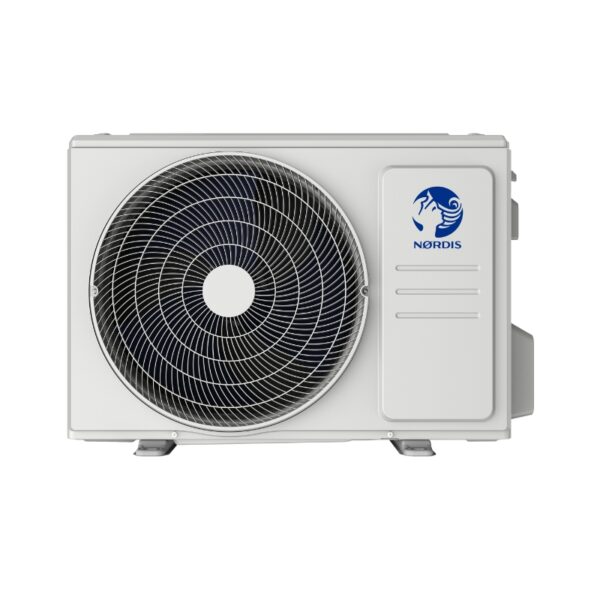

Outdoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension(WxDxH)	mm	765x303x555
Packing (WxDxH)	mm	887x337x610
Net/Gross weight	kg	26.6/29
Max. Air flow	m3/h	2200
Sound Power Level	dB(A)	60
Refrigerant piping	R32 Charged volume	kg	0.72
VAP (GWP)		675
Additional Refrigerant	g/m	12
Refrigerant piping	Liquid side/ Gas side	mm(inch)	6.35mm(1/4in)/9.52mm(3/8in)
Max. refrigerant pipe length	m	25
Max. difference in level	m	10
Power Cable	Power Cable	mm2	1.5x3
Automatic Switch	A	16
Communication Cable	mm2	1.0x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 18
Cooling	Capacity, kW	kW	5.28（2.90~5.59）
Input	W	1633（720~2088)
Current	A	7.2（3.2~9.2)
SEER		6.3
Heating	Capacity, kW	kW	5.57（2.37~6.10）
Input	W	1540（700~1930)
Current	A	6.8（3.1~8.5)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	570x570x260
Packing Dimension (WxDxH)	mm	662x662x317
Panel Dimension (WxDxH)	mm	647x647x50
Panel packing dimension (WxDxH)	mm	715x715x123
Net/Gross weight	kg	16/20.6
Panel Net/Gross weight	kg	2.5/4.5
Air flow	m3/h	720/620/500
Sound pressure level	dB(A)	43/39.5/35.5/29
WIFI		Optional
Outdoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension(WxDxH)	mm	805x330x554
Packing (WxDxH)	mm	915x370x615
Net/Gross weight	kg	32.5/35.2
Max. Air flow	m3/h	2100
Sound Power Level	dB(A)	63
Refrigerant piping	R32 Charged volume	kg	1.15
VAP (GWP)		675
Additional Refrigerant	g/m	12
Refrigerant piping	Liquid side/ Gas side	mm(inch)	6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length	m	30
Max. difference in level	m	20
Power Cable	Power Cable	mm2	1.5x3
Automatic Switch	A	16
Communication Cable	mm2	1.0x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 24
Cooling	Capacity, kW	kW	7.03（3.30~7.91）
Input	W	2320（780~2748)
Current	A	10.2（4.2~12)
SEER		6.2
Heating	Capacity, kW	kW	7.62（2.81~8.94）
Input	W	1900（610~2700)
Current	A	8.5（3.6~12.1)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x205
Packing Dimension (WxDxH)	mm	910x910x250
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	21.6/25.4
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	1300/1140/1000
Sound pressure level	dB(A)	45.5/42.5/39.5/27
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension(WxDxH)	mm	890x342x673
Packing (WxDxH)	mm	995x398x740
Net/Gross weight	kg	43.9/46.9
Max. Air flow	m3/h	3500
Sound Power Level	dB(A)	67
Refrigerant piping	R32 Charged volume	kg	1.5
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	50
Max. difference in level	m	25
Power Cable	Power Cable	mm2	2.5x3
Automatic Switch	A	25
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 30
Cooling	Capacity, kW	kW	8.79（2.23~9.38）
Input	W	2750（190~3000)
Current	A	12.0（2.0~13.0)
SEER		6.6
Heating	Capacity, kW	kW	9.38（2.70~9.73）
Input	W	2450（430~2550)
Current	A	11.0（3.0~11.5)
SCOP		4.2
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x245
Packing Dimension (WxDxH)	mm	910x910x290
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	24.6/28.6
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	1720/1550/1400
Sound pressure level	dB(A)	49.5/47/44/38.5
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension(WxDxH)	mm	946x410x810
Packing (WxDxH)	mm	1090x500x885
Net/Gross weight	kg	52.8/57.3
Max. Air flow	m3/h	3800
Sound Power Level	dB(A)	70
Refrigerant piping	R32 Charged volume	kg	2
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	50
Max. difference in level	m	25
Power Cable	Power Cable	mm2	2.5x3
Automatic Switch	A	25
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 36
Cooling	Capacity, kW	kW	10.55（2.70~11.43）
Input	W	3950（900~4200)
Current	A	17.5（4.2~18.5)
SEER		6.7
Heating	Capacity, kW	kW	11.14(2.78~12.30)
Input	W	3000（800~3950)
Current	A	13.5（3.5~17.5)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x245
Packing Dimension (WxDxH)	mm	910x910x290
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	27.2/31.2
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	1700/1550/1380
Sound pressure level	dB(A)	50/47.5/44.5/39
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension(WxDxH)	mm	946x410x810
Packing (WxDxH)	mm	1090x500x885
Net/Gross weight	kg	80.5/85
Max. Air flow	m3/h	4000
Sound Power Level	dB(A)	70
Refrigerant piping	R32 Charged volume	kg	2.4
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	75
Max. difference in level	m	30
Power Cable	Power Cable	mm2	4.0x3
Automatic Switch	A	32
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 36-3
Cooling	Capacity, kW	kW	10.55（2.70~11.43）
Input	W	4000（890~4150)
Current	A	6.5（1.4~6.5)
SEER		6.4
Heating	Capacity, kW	kW	11.14(2.78~12.66)
Input	W	3000（780~4000)
Current	A	5.0（1.3~6.4)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x245
Packing Dimension (WxDxH)	mm	910x910x290
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	27.2/31.2
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	1800/1600/1400
Sound pressure level	dB(A)	50/47.5/44.5/39
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	380-415V, 3Ph，50Hz
Dimension(WxDxH)	mm	946x410x810
Packing (WxDxH)	mm	1090x500x885
Net/Gross weight	kg	66.9/71.5
Max. Air flow	m3/h	4000
Sound Power Level	dB(A)	70
Refrigerant piping	R32 Charged volume	kg	2.4
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	75
Max. difference in level	m	30
Power Cable	Power Cable	mm2	2.5x5
Automatic Switch	A	16
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 42
Cooling	Capacity, kW	kW	12.02(2.93~12.31)
Input	W	4200（680~4350)
Current	A	18.8（3.1~19.1)
SEER		6.1
Heating	Capacity, kW	kW	13.48(3.37~14.07)
Input	W	3700（750~4250)
Current	A	16.3（3.4~19)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x287
Packing Dimension (WxDxH)	mm	910x910x330
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	29.3/33.5
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	1900/1750/1600
Sound pressure level	dB(A)	51/48.5/46/38
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	220-240V,1F，50Hz
Dimension(WxDxH)	mm	946x410x810
Packing (WxDxH)	mm	1090x500x885
Net/Gross weight	kg	71.0/75.0
Max. Air flow	m3/h	4000
Sound Power Level	dB(A)	71
Refrigerant piping	R32 Charged volume	kg	2.8
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	75
Max. difference in level	m	30
Power Cable	Power Cable	mm2	4.0x3
Automatic Switch	A	32
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 48-3
Cooling	Capacity, kW	kW	14.07(3.52~15.83)
Input	W	4650（800~5900)
Current	A	8.1（1.8~10.2)
SEER		6.1
Heating	Capacity, kW	kW	16.12(4.10~17.29)
Input	W	4580（900~5500)
Current	A	8.0（1.9~9.5)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x287
Packing Dimension (WxDxH)	mm	910x910x330
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	29.3/33.5
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	1970/1780/1580
Sound pressure level	dB(A)	51/48.5/46.5/37.5
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	380-415V,3Ph，50Hz
Dimension(WxDxH)	mm	952x415x1333
Packing (WxDxH)	mm	1095x495x1480
Net/Gross weight	kg	103.7/118.3
Max. Air flow	m3/h	7500
Sound Power Level	dB(A)	73
Refrigerant piping	R32 Charged volume	kg	2.9
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	75
Max. difference in level	m	30
Power Cable	Power Cable	mm2	2.5x5
Automatic Switch	A	20
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Model	NIC-NOA 55-3
Cooling	Capacity, kW	kW	15.24（4.10~16.71）
Input	W	5000（980~6200)
Current	A	8.6（2.1~10.7)
SEER		6.3
Heating	Capacity, kW	kW	18.17（4.40~19.93）
Input	W	5550（1020~6700)
Current	A	9.6（2.1~10.7)
SCOP		4.0
Energy Efficiency Class	Cooling/Heating		A++/A+
Indoor unit	Power supply	V,Hz,Ph	220-240V,1Ph，50Hz
Dimension (WxDxH)	mm	830x830x287
Packing Dimension (WxDxH)	mm	910x910x330
Panel Dimension (WxDxH)	mm	950x950x55
Panel packing dimension (WxDxH)	mm	1035x1035x90
Net/Gross weight	kg	29.3/33.5
Panel Net/Gross weight	kg	6/9
Air flow	m3/h	2000/1850/1650
Sound pressure level	dB(A)	53/50.5/48/40
WIFI		Included
Outdoor unit	Power supply	V,Hz,Ph	380-415V,3Ph，50Hz
Dimension(WxDxH)	mm	952x415x1333
Packing (WxDxH)	mm	1095x495x1480
Net/Gross weight	kg	107.0/121.2
Max. Air flow	m3/h	7500
Sound Power Level	dB(A)	73
Refrigerant piping	R32 Charged volume	kg	3.0
VAP (GWP)		675
Additional Refrigerant	g/m	24
Refrigerant piping	Liquid side/ Gas side	mm(inch)	9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length	m	75
Max. difference in level	m	30
Power Cable	Power Cable	mm2	2.5x5
Automatic Switch	A	20
Communication Cable	mm2	1.5x4
Ambient temperature	Cooling	℃	-15～50
Heating	℃	-20～24

Description


BIONIC PRINCIPLE	360° DIRECTIONS	INSIGHT SENSORIC	RETURN TO THEIR PREVIOUS POSITION
BIONIC PRINCIPLE optimum aerodynamic performance is achieved, resulting in a significant reduction in noise levels.	4-WAY AIR INTAKE helps circulate the air throughout the room, keeping it clean and maintaining an even temperature.	Thanks to INSIGHT SENSORIC intensive cooling will only start when the room is occupied, otherwise the air conditioner will run at low speed.	When you switch the unit back on, the airflow louvres will return to their PREVIOUS POSITION. The cooling settings are the same every time.

Users manual
Technical Data
