HLT40MONO-3

Ultima Mono for commercial uses

Clear

Due to its power and versatile output capabilities, the NØRDIS Ultima commercial series ensures comfortable heating, cooling, and domestic hot water supply even in the largest commercial projects – hotels, offices, factories, and other industrial sectors. The optimized cascading system allows the NØRDIS Ultima series to adapt to a wide range of needs. In designing the NØRDIS Ultima, safety is as important as comfort. The advanced safety control system enables you to enjoy constant comfort both efficiently and securely.

The NØRDIS Ultima series combines top-tier efficiency with intelligent design to deliver reliable performance in any environment. With an A+++ energy efficiency class, it ensures maximum output while keeping energy consumption to a minimum. Using the eco-friendly R290 refrigerant, the system provides an environmentally responsible heating and cooling solution. Designed for demanding conditions, the Ultima maintains stable operation even when the outdoor temperature drops to -25 °C, while achieving supply water temperatures of up to 75 °C. Its intuitive liquid crystal display makes operation and monitoring effortless, and the integrated smart network functionality enables convenient, intelligent control for optimal comfort and performance.

Read more
Installation specialists
Call us
+370 37 373248
Ask us
Write us

Description

Main features

Advantages of the model:

Integrated Wi-Fi module for smartphone control.

High energy efficiency reaches the A+++ energy level.

Supplied water temperature up to 75℃.

One control panel manages up to 10 units in a single cascade system.

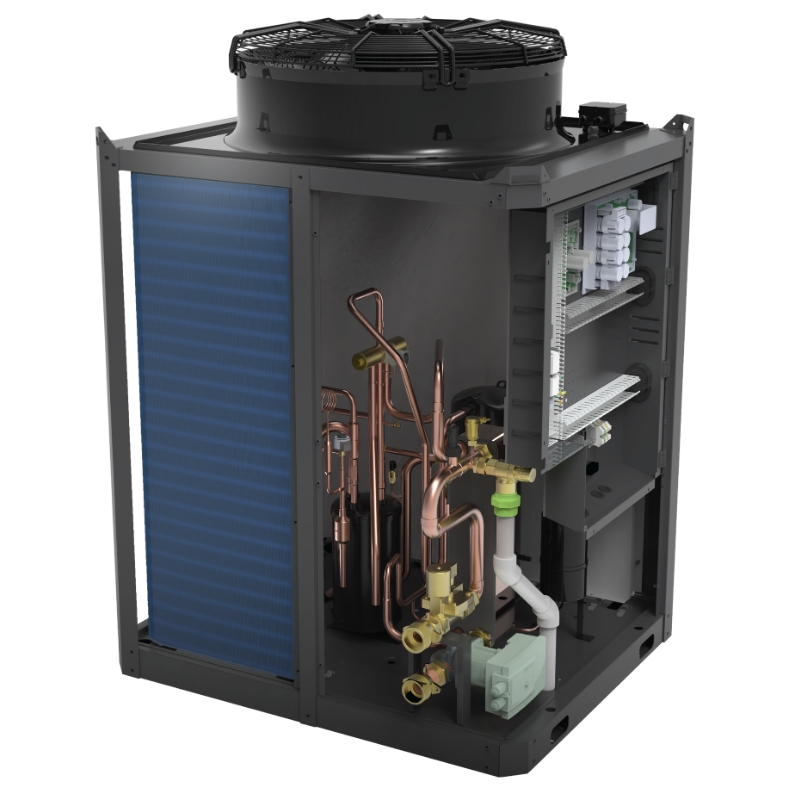

Outdoor unit components

  1. EC fan motor
  2. High-quality heat exchanger
  3. Electronic expansion valve
  4. Control system
  5. Stable and efficient DC inverter compressor

Documents

Here you can download all the most important documents related to this product and its use.

User manual
pdf
Product Fiche
HLT40MONO-3_HLT-CONTROL-BOX Product Fiche
pdf
Installation manual
2 PDF
Installation manual
Outdoor+control box
PDF
Touchscreen instructions
PDF

Discover

  •

    Ultima Mono Split indoor unit with DHW Tank
    6-12 kW
    16 kW
    Model: HLT-9-250-3S
    3-way Diverting Valve LK Systems
    Water Flow Meter Vortex
    Circulation Pump Grundfos (9m)
    DHW Tank Material Duplex 2205 SS
    Model: HLT-12-250-3S
    3-way Diverting Valve LK Systems
    Water Flow Meter Vortex
    Circulation Pump Grundfos (12m)
    DHW Tank Material Duplex 2205 SS
    This product has multiple variants. The options may be chosen on the product page
    View product

  • Ultima Mono Split indoor unit without DHW tank
    6-12 kW
    16 kW
    Model: HLT-9-3S
    3-way Diverting Valve LK Systems
    Water Flow Meter Vortex
    Circulation Pump Grundfos (9m)
    Backup Heater 9 (3+6) kW
    Model: HLT-12-3S
    3-way Diverting Valve LK Systems
    Water Flow Meter Vortex
    Circulation Pump Grundfos (12m)
    Backup Heater 9 (3+6) kW
    This product has multiple variants. The options may be chosen on the product page
    View product

  • Ultima Mono Split outdoor unit
    6,7 kW
    9,5 kW
    12,0 kW
    16,6 kW
    Model: HLT6MONO-S
    Energy Class (35°C / 55°C) A+++ / A++
    Heating Capacity A7/W35 6,76 kW
    Cooling Capacity A35/W18 5,43 kW
    Refrigerant Type R290
    Model: HLT9MONO-S
    Energy Class (35°C / 55°C) A+++ / A++
    Heating Capacity A7/W35 9,52 kW
    Cooling Capacity A35/W18 7,83 kW
    Refrigerant Type R290
    Model: HLT12MONO-S
    Energy Class (35°C / 55°C) A+++ / A++
    Heating Capacity A7/W35 12,0 kW
    Cooling Capacity A35/W18 10,1 kW
    Refrigerant Type R290
    Model: HLT16MONO-3S
    Energy Class (35°C / 55°C) A+++ / A++
    Heating Capacity A7/W35 16,6 kW
    Cooling Capacity A35/W18 12,4 kW
    Refrigerant Type R290
    This product has multiple variants. The options may be chosen on the product page
    View product
