NV6-71D1R/R1-IDU

High static pressure duct

Clear

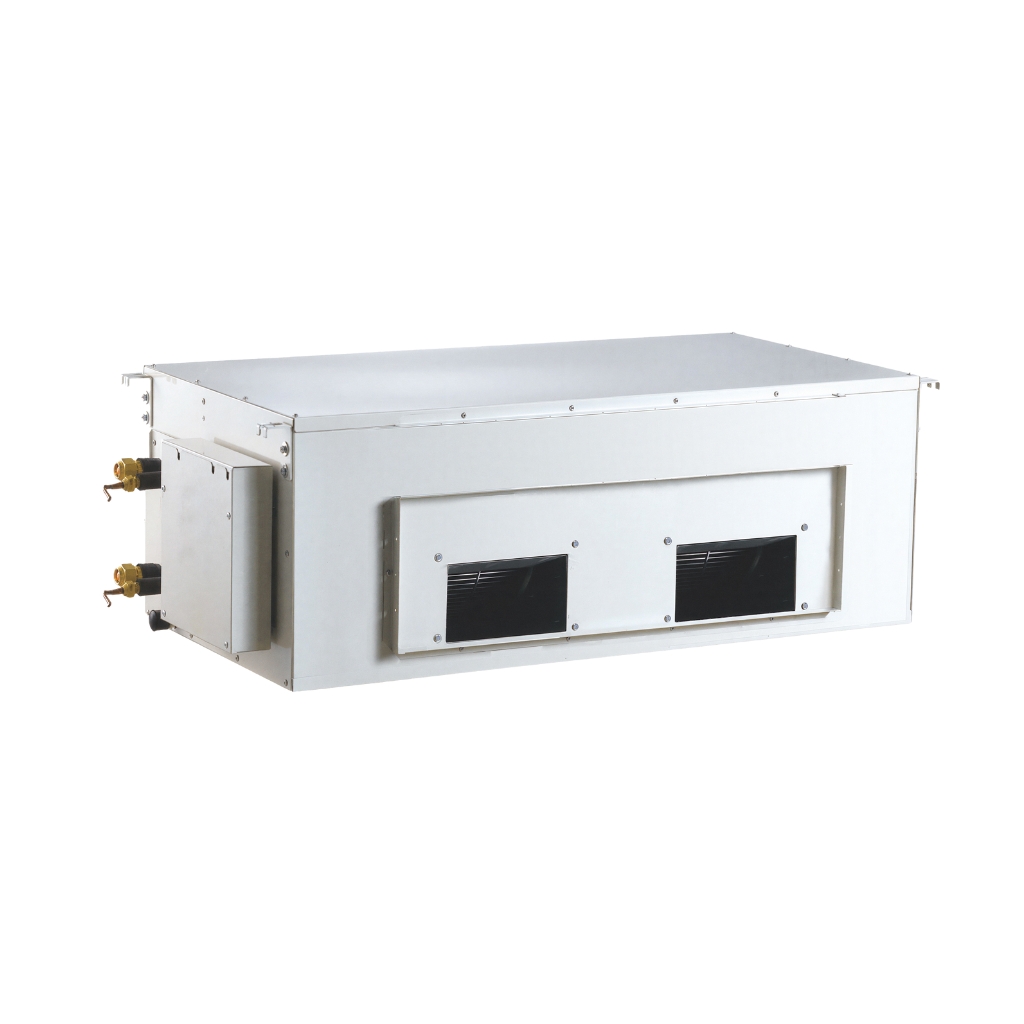

NØRDIS VRF high static pressure duct-type indoor unit is a professional solution for larger or multi-room spaces, providing powerful air supply of up to 300 Pa, the ability to connect multiple air outlets, fresh air intake, and efficient filtration (coarse filter, PP filter, optional silver ion module). The system keeps indoor air fresh, clean, odor-free, and healthier, making it suitable for both residential and commercial spaces, and it comes with a wired controller for convenient operation.

Installation specialists
Call us
+370 37 373248
Ask us
Write us

Description

Main features

Advantages of the model:

Recommended places – Workshop, hotel, restaurant, shopping mall, ballroom, bar and other large space places

Easy introduction of outdoor fresh air heating refrigeration and indoor air exchange, keep indoor air fresh, bring you comfortable fresh air.

Maximum static pressure 300Pa, can be long distance multipoint air supply, fully meet the air conditioning needs of different Spaces.

Built-in coarse filter, PP filter screen, optional silver ion purification module, effectively remove large particles in the air, absorb formaldehyde and odor, eliminate germs.

Remote controller

  • Cooling / dehumidification / fan / heating / automatic and other operation settings
  • Temperature / fan speed setting
  • Sleep/timer/swing/turbo and other functions

The appearance of the remote control may differ from that shown in the picture.

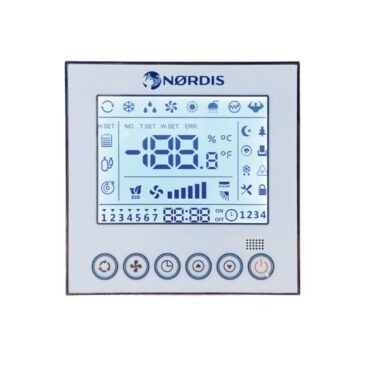

Wired controller

  • Cooling / dehumidification / fan / heating / automatic and other operation settings
  • Temperature / fan speed setting
  • Sleep/timer/swing/turbo and other function settings
  • Monitoring function, big LCD screen displays the operation status of the unit
  • Remote control signal available

The appearance of the remote control may differ from that shown in the picture.

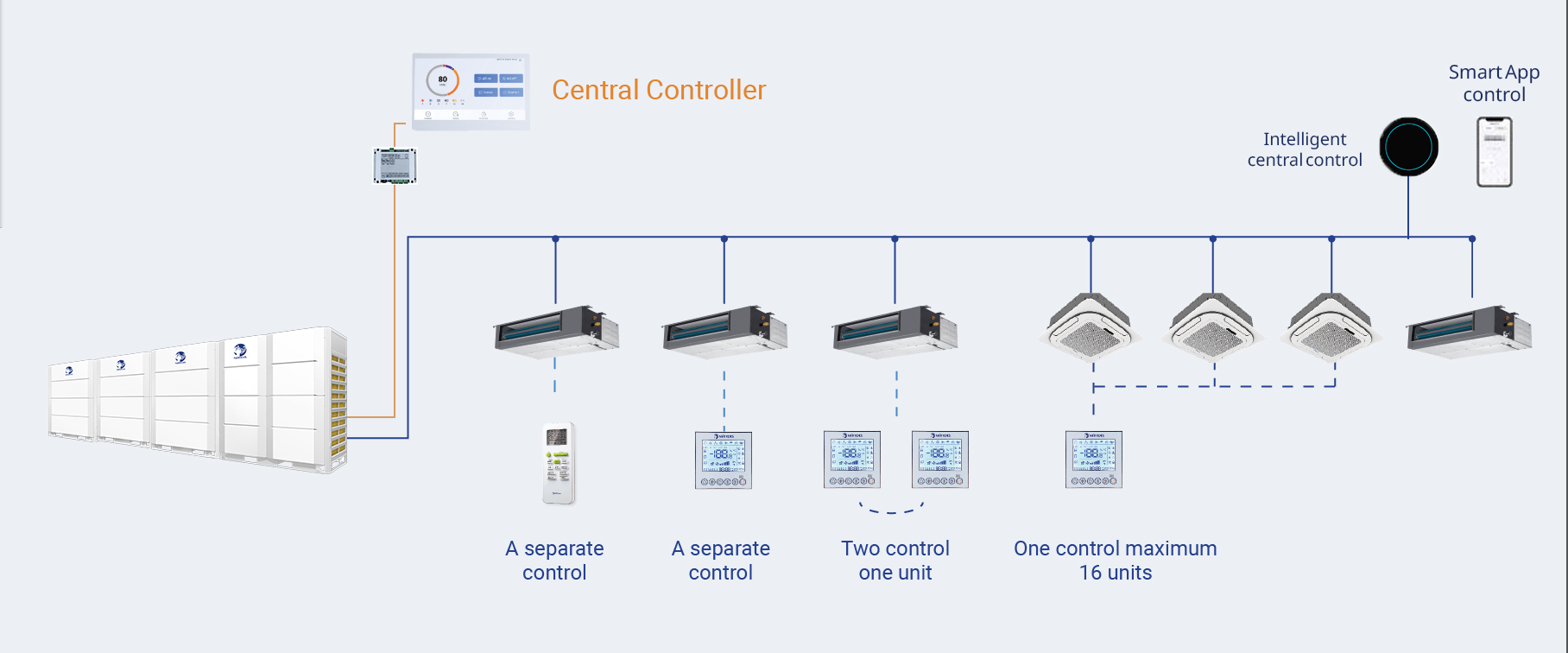

Central controller

  • 7 inches and colorful screen display, beautiful appearance, touch screen, easy operation.
  • A variety of combinations, single or multiple machines can be operated simultaneously.
  • Up to 16 systems and 1280 indoor units can be connected, easy to set indoor units parameters.
  • It also has the schedule setting and historical fault query function.

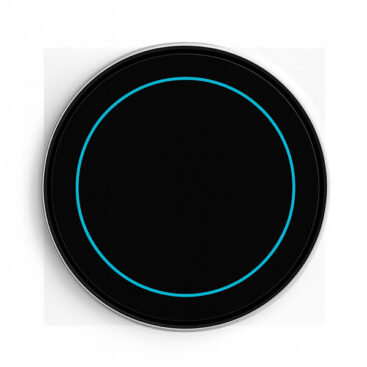

Wifi module

Connect the WiFi module with the air-conditioning system, and then match the WiFi module with the wireless router through the mobile phone APP, and the air-conditioning equipment is networked, so that the cell phone APP can realize remote control of the air-conditioning system from a different place and enjoy the convenience interconnection.

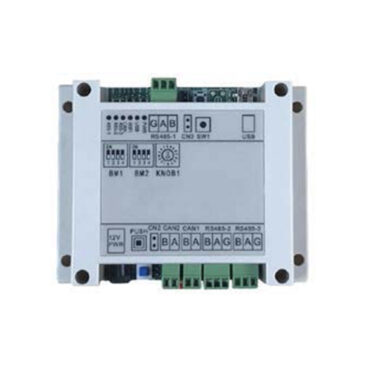

Protocol Converter

A Protocol Converter in a VRF system is a device that enables communication between the VRF air conditioning units and the building management system (BMS). It converts the VRF system’s communication protocol into standard formats such as Modbus allowing centralized monitoring, control, and integration of the HVAC system within the overall building automation network.

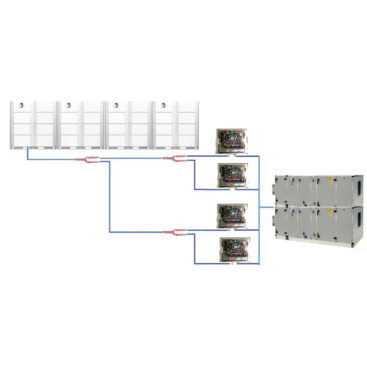

AHU Connection KIT

Solution to extend NØRDIS VRF technology to third party Air Handling Units.
• Easy for connecting to third party AHU
• Setting capacity by DIP
• Remoter or wire controller can be chosen
• 3 steps fan motor speed, Low/Mid/High
• Error status: No error or error occurred

Certified by Eurovent

This certification guarantees that NØRDIS VRF systems deliver true, tested performance, offering confidence to installers, engineers, and end users alike. It also demonstrates that NØRDIS products fully comply with European energy efficiency and environmental standards, ensuring sustainable comfort solutions for modern buildings.

Documents

Here you can download all the most important documents related to this product and its use.

Technical data
pdf

Discover

  •

    Outdoor Units
    25,2 kW
    28,0 kW
    33,5 kW
    40,0 kW
    45,0 kW
    50,4 kW
    56,0 kW
    61,5 kW
    68,0 kW
    73,0 kW
    78,5 kW
    85,0 kW
    90,0 kW
    Model: NV6-252-T3/R1-ODU
    Cooling capacity 25,2 kW
    Heating capacity 25,2 kW
    Sound power 56/83 dB(A)
    Net Dimension (WxDxH) 925x845x1780 mm
    Model: NV6-280-T3/R1-ODU
    Cooling capacity 28 kW
    Heating capacity 28 kW
    Sound power 57/84 dB(A)
    Net Dimension (WxDxH) 925x845x1780 mm
    Model: NV6-335-T3/R1-ODU
    Cooling capacity 33,5 kW
    Heating capacity 33,5 kW
    Sound power 58/86 dB(A)
    Net Dimension (WxDxH) 925x845x1780 mm
    Model: NV6-400-T3/R1-ODU
    Cooling capacity 40 kW
    Heating capacity 40 kW
    Sound power 59/90 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-450-T3/R1-ODU
    Cooling capacity 45 kW
    Heating capacity 45 kW
    Sound power 60/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-504-T3/R1-ODU
    Cooling capacity 50,4 kW
    Heating capacity 50,4 kW
    Sound power 61/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-560-T3/R1-ODU
    Cooling capacity 56 kW
    Heating capacity 56 kW
    Sound power 61/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-615-T3/R1-ODU
    Cooling capacity 61,5 kW
    Heating capacity 61,5 kW
    Sound power 62/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-680-T3/R1-ODU
    Cooling capacity 68 kW
    Heating capacity 68 kW
    Sound power 63/93 dB(A)
    Net Dimension (WxDxH) 1760x845x1780 mm
    Model: NV6-730-T3/R1-ODU
    Cooling capacity 73 kW
    Heating capacity 73 kW
    Sound power 64/93 dB(A)
    Net Dimension (WxDxH) 1760x845x1780 mm
    Model: NV6-785-T3/R1-ODU
    Cooling capacity 78,5 kW
    Heating capacity 78,5 kW
    Sound power 66/93 dB(A)
    Net Dimension (WxDxH) 1900x845x1780 mm
    Model: NV6-850-T3/R1-ODU
    Cooling capacity 85 kW
    Heating capacity 85 kW
    Sound power 66/93 dB(A)
    Net Dimension (WxDxH) 1900x845x1780 mm
    Model: NV6-900-T3/R1-ODU
    Cooling capacity 90 kW
    Heating capacity 90 kW
    Sound power 66/93 dB(A)
    Net Dimension (WxDxH) 1900x845x1780 mm
    This product has multiple variants. The options may be chosen on the product page
    View product

  • Full DC Inverter MINI VRF Units
    12,1 kW
    14,0 kW
    15,5 kW
    18,0 kW
    22,4 kW
    25,2 kW
    28,0 kW
    Model: NV6-120F1/R1-ODU
    Cooling capacity 12.1 kW
    Heating capacity 12.1 kW
    Sound power level 52/72 dB(A)
    Net Dimension (WxDxH) 1010x410x850 mm
    Model: NV6-140F1/R1-ODU
    Cooling capacity 14 kW
    Heating capacity 14 kW
    Sound power level 53/73 dB(A)
    Net Dimension (WxDxH) 1010x410x850 mm
    Model: NV6-160F1/R1-ODU
    Cooling capacity 15,5 kW
    Heating capacity 16 kW
    Sound power level 54/74 dB(A)
    Net Dimension (WxDxH) 1010x410x850 mm
    Model: NV6-180F3/R1-ODU
    Cooling capacity 18 kW
    Heating capacity 18 kW
    Sound power level 55/79 dB(A)
    Net Dimension (WxDxH) 1120×400×1560 mm
    Model: NV6-224F3/R1-ODU
    Cooling capacity 22,4 kW
    Heating capacity 22,4 kW
    Sound power level 60/79 dB(A)
    Net Dimension (WxDxH) 1120×400×1560 mm
    Model: NV6-252F3/R1-ODU
    Cooling capacity 25,2 kW
    Heating capacity 25,2 kW
    Sound power level 60/82 dB(A)
    Net Dimension (WxDxH) 1120×400×1560 mm
    Model: NV6-280F3/R1-ODU
    Cooling capacity 28 kW
    Heating capacity 28 kW
    Sound power level 61/82 dB(A)
    Net Dimension (WxDxH) 1120×400×1560 mm
