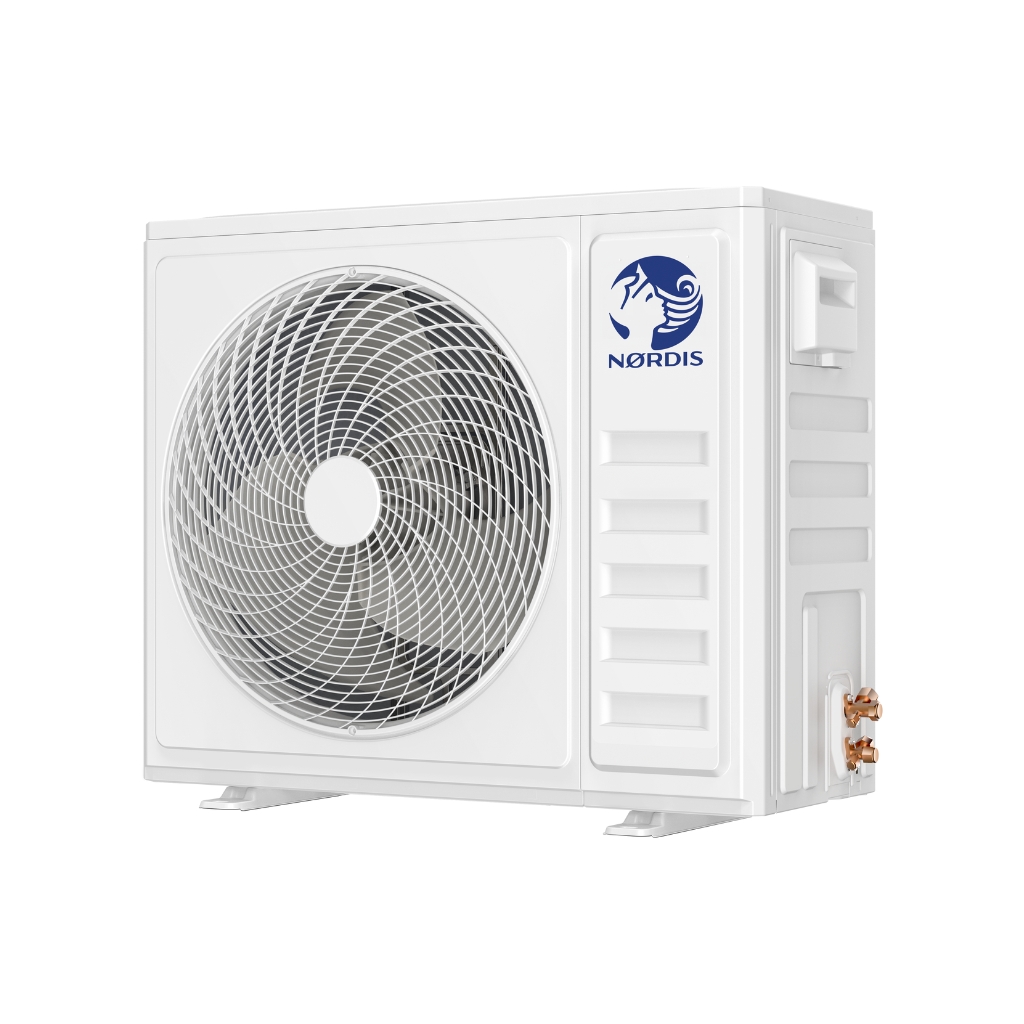

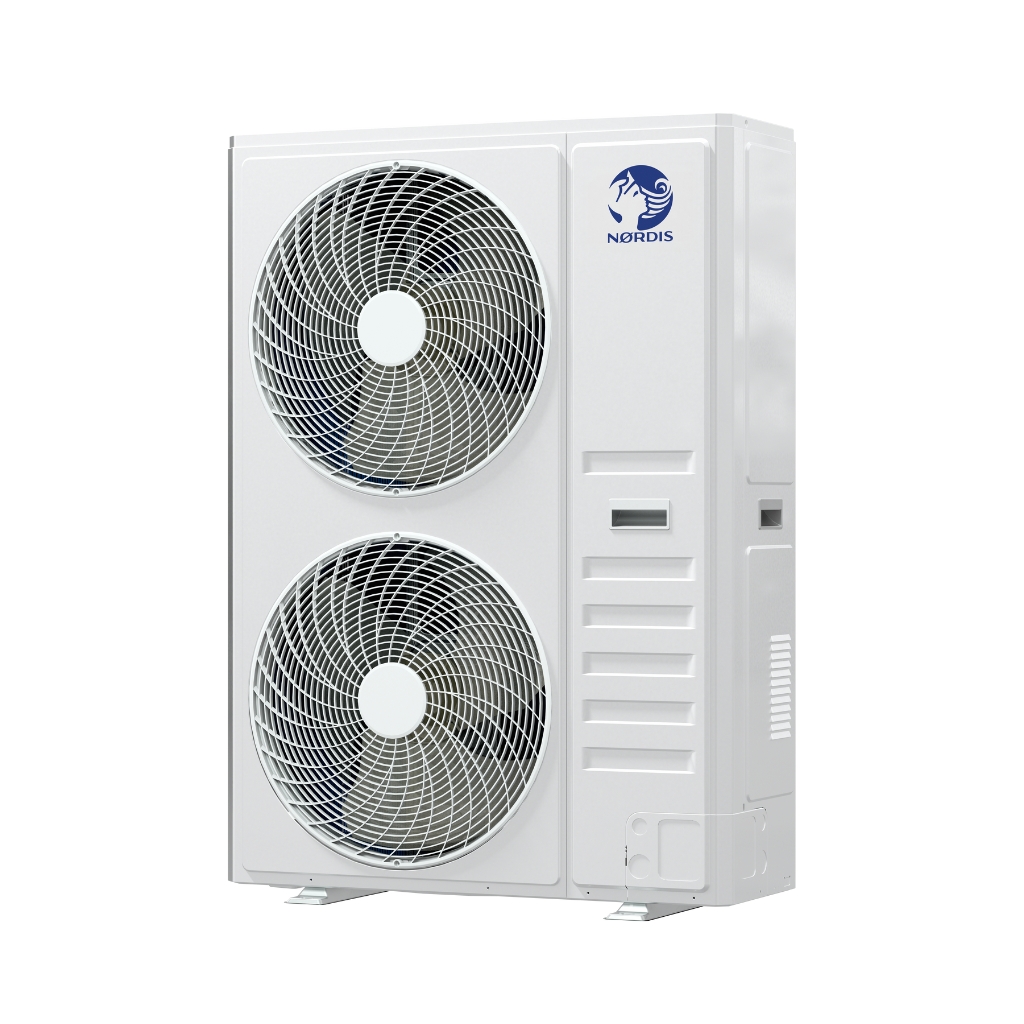

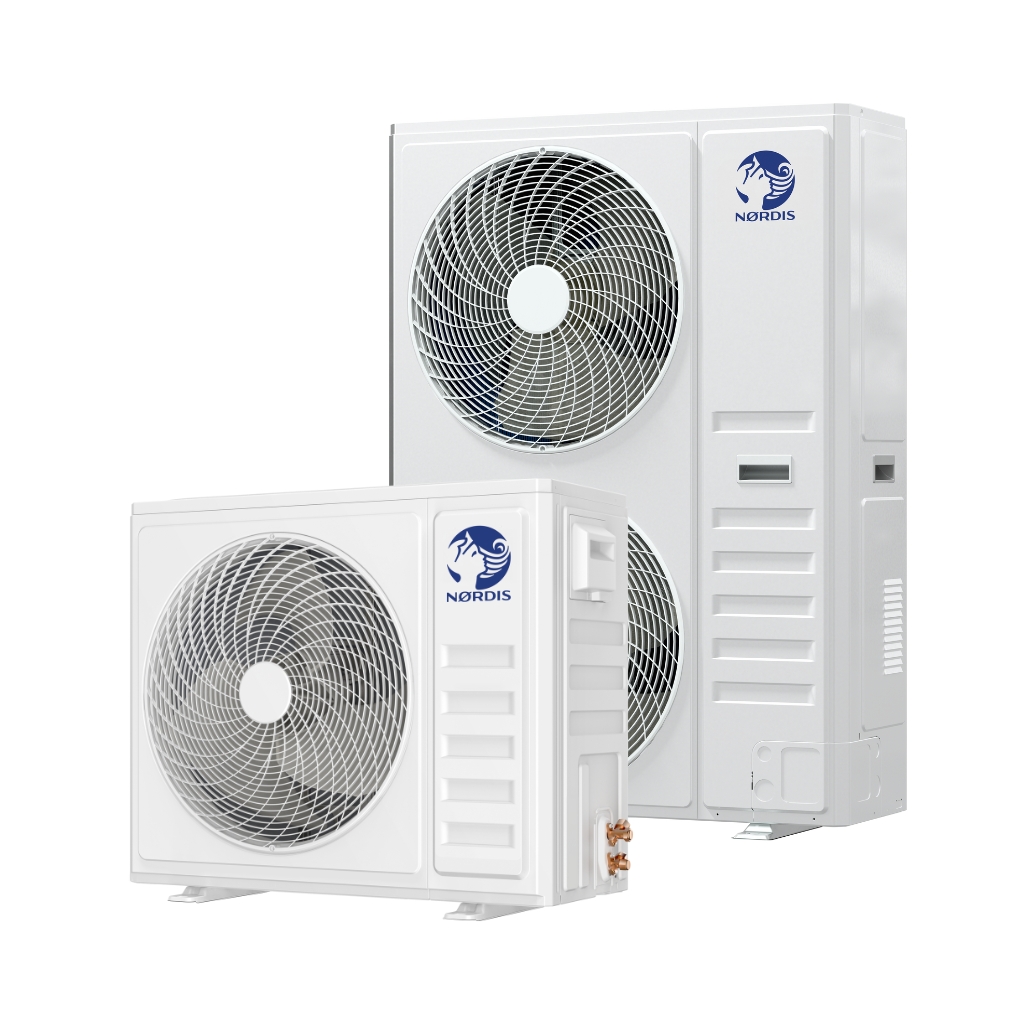

NV6-120F1/R1-ODU

Full DC Inverter MINI VRF Units

Clear

NØRDIS Mini VRF use full DC inverter twin rotary compressor, which has high- efficiency both for full load condition and partial load condition, also leads to low noise, stable and reliable operation.
The Mini VRF can operate under -25°C to ensure the heating demand, operate up to 55°C to make sure the cooling capacity output with high efficiency and stability.

Equipped with a full DC inverter and a twin rotary compressor, ensuring quiet, smooth, and reliable performance. The high-efficiency DC fan motor automatically adjusts to the required capacity, reducing energy consumption by up to 45%.
Advanced electronic control box cooling technology maintains optimal operation even in high ambient temperatures, extending system lifespan and stability.

The system operates efficiently in extreme conditions, from -25°C to 55°C, guaranteeing consistent cooling and heating capacity with high efficiency.

Read more
Installation specialists
Call us
+370 37 373248
Ask us
Write us

Description

Main features

Advantages of the model:

High Efficiency and Powerful Performance​

Reliable Operation with Multi-Level Protection​

Flexible Installation and System Scalability

Wide Operating Temperature Range​

High Efficiency and Powerful Performance

NØRDIS NV6+ series outdoor units feature a full DC inverter system with twin rotary compressors, ensuring high efficiency at both full and partial load conditions. This technology provides stable, quiet, and energy-saving operation, perfectly balancing performance and comfort.

Reliable Operation with Multi-Level Protection

The units are equipped with triple backup operation technology, allowing continuous system performance even if one compressor, fan, or module fails. A comprehensive protection system includes safeguards against overpressure, overcurrent, low voltage, overheating, phase errors, lightning, and electromagnetic interference, ensuring long lasting reliability in demanding environments.

Flexible Installation and System Scalability

With a compact structure and super-long piping design of up to 1100 meters, NØRDIS VRF systems offer exceptional flexibility for complex building layouts. A single system can connect up to 80 indoor units, while the three-direction pipe connection design (front, side, and rear) simplifies installation even in limited spaces.

Wide Operating Temperature Range

NØRDIS VRF systems are designed to perform efficiently across extreme climates – from -30°C to +56°C – providing dependable cooling and heating throughout the year, regardless of seasonal or environmental conditions.

Certified by Eurovent

This certification guarantees that NØRDIS VRF systems deliver true, tested performance, offering confidence to installers, engineers, and end users alike. It also demonstrates that NØRDIS products fully comply with European energy efficiency and environmental standards, Wide Operating Temperature Range NØRDIS VRF systems are designed to perform efficiently across extreme climates – from -30°C to +56°C – providing dependable cooling and heating throughout the year, regardless of seasonal or environmental conditions. ensuring sustainable comfort solutions for modern buildings.

Documents

Here you can download all the most important documents related to this product and its use.

Technical data
pdf

Discover

  •

    Outdoor Units
    25,2 kW
    28,0 kW
    33,5 kW
    40,0 kW
    45,0 kW
    50,4 kW
    56,0 kW
    61,5 kW
    68,0 kW
    73,0 kW
    78,5 kW
    85,0 kW
    90,0 kW
    Model: NV6-252-T3/R1-ODU
    Cooling capacity 25,2 kW
    Heating capacity 25,2 kW
    Sound power 56/83 dB(A)
    Net Dimension (WxDxH) 925x845x1780 mm
    Model: NV6-280-T3/R1-ODU
    Cooling capacity 28 kW
    Heating capacity 28 kW
    Sound power 57/84 dB(A)
    Net Dimension (WxDxH) 925x845x1780 mm
    Model: NV6-335-T3/R1-ODU
    Cooling capacity 33,5 kW
    Heating capacity 33,5 kW
    Sound power 58/86 dB(A)
    Net Dimension (WxDxH) 925x845x1780 mm
    Model: NV6-400-T3/R1-ODU
    Cooling capacity 40 kW
    Heating capacity 40 kW
    Sound power 59/90 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-450-T3/R1-ODU
    Cooling capacity 45 kW
    Heating capacity 45 kW
    Sound power 60/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-504-T3/R1-ODU
    Cooling capacity 50,4 kW
    Heating capacity 50,4 kW
    Sound power 61/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-560-T3/R1-ODU
    Cooling capacity 56 kW
    Heating capacity 56 kW
    Sound power 61/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-615-T3/R1-ODU
    Cooling capacity 61,5 kW
    Heating capacity 61,5 kW
    Sound power 62/93 dB(A)
    Net Dimension (WxDxH) 1340x845x1780 mm
    Model: NV6-680-T3/R1-ODU
    Cooling capacity 68 kW
    Heating capacity 68 kW
    Sound power 63/93 dB(A)
    Net Dimension (WxDxH) 1760x845x1780 mm
    Model: NV6-730-T3/R1-ODU
    Cooling capacity 73 kW
    Heating capacity 73 kW
    Sound power 64/93 dB(A)
    Net Dimension (WxDxH) 1760x845x1780 mm
    Model: NV6-785-T3/R1-ODU
    Cooling capacity 78,5 kW
    Heating capacity 78,5 kW
    Sound power 66/93 dB(A)
    Net Dimension (WxDxH) 1900x845x1780 mm
    Model: NV6-850-T3/R1-ODU
    Cooling capacity 85 kW
    Heating capacity 85 kW
    Sound power 66/93 dB(A)
    Net Dimension (WxDxH) 1900x845x1780 mm
    Model: NV6-900-T3/R1-ODU
    Cooling capacity 90 kW
    Heating capacity 90 kW
    Sound power 66/93 dB(A)
    Net Dimension (WxDxH) 1900x845x1780 mm
    This product has multiple variants. The options may be chosen on the product page
    View product

  • 360° Air Outlet Cassette
    2,8 kW
    3,6 kW
    4,5 kW
    5,6 kW
    5,0 kW
    6,3 kW
    7,1 kW
    8,0 kW
    9,0 kW
    10,0 kW
    11,2 kW
    12,5 kW
    14,0 kW
    16,0 kW
    Model: NV6-28C8/R1-IDU
    Cooling capacity 2,8 kW
    Heating capacity 3,2 kW
    Noise level H/M/L 25/27/30 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-36C8/R1-IDU
    Cooling capacity 3,6 kW
    Heating capacity 4 kW
    Noise level H/M/L 25/27/30 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-45C8/R1-IDU
    Cooling capacity 4,5 kW
    Heating capacity 5 kW
    Noise level H/M/L 26/30/33 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-56C8/R1-IDU
    Cooling capacity 5,6 kW
    Heating capacity 6,3 kW
    Noise level H/M/L 27/30/33 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-50C8/R1-IDU
    Cooling capacity 5 kW
    Heating capacity 5,6 kW
    Noise level H/M/L 27/30/33 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-63C8/R1-IDU
    Cooling capacity 6,3 kW
    Heating capacity 7,1 kW
    Noise level H/M/L 28/31/35 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-71C8/R1-IDU
    Cooling capacity 7,1 kW
    Heating capacity 8 kW
    Noise level H/M/L 29/33/37 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-80C8/R1-IDU
    Cooling capacity 8 kW
    Heating capacity 9 kW
    Noise level H/M/L 29/34/38 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-90C8/R1-IDU
    Cooling capacity 9 kW
    Heating capacity 10 kW
    Noise level H/M/L 29/34/38 dB(A)
    Net Dimension (WxDxH) 840x245x840 mm
    Model: NV6-100C8/R1-IDU
    Cooling capacity 10 kW
    Heating capacity 11,2 kW
    Noise level H/M/L 32/35/39 dB(A)
    Net Dimension (WxDxH) 840x290x840 mm
    Model: NV6-112C8/R1-IDU
    Cooling capacity 11,2 kW
    Heating capacity 12,5 kW
    Noise level H/M/L 33/36/41 dB(A)
    Net Dimension (WxDxH) 840x290x840 mm
    Model: NV6-125C8/R1-IDU
    Cooling capacity 12,5 kW
    Heating capacity 14 kW
    Noise level H/M/L 33/36/41 dB(A)
    Net Dimension (WxDxH) 840x290x840 mm
    Model: NV6-140C8/R1-IDU
    Cooling capacity 14 kW
    Heating capacity 16 kW
    Noise level H/M/L 34/38/43 dB(A)
    Net Dimension (WxDxH) 840x290x840 mm
    Model: NV6-160C8/R1-IDU
    Cooling capacity 16 kW
    Heating capacity 18 kW
    Noise level H/M/L 37/43/47 dB(A)
    Net Dimension (WxDxH) 840x290x840 mm
    This product has multiple variants. The options may be chosen on the product page
    View product

  • Two way cassette
    2,8 kW
    2,2 kW
    3,6 kW
    4,5 kW
    5,0 kW
    5,6 kW
    6,3 kW
    7,1 kW
    Model: NV6-28C2/R1IDU
    Cooling capacity 2,8 kW
    Heating capacity 3,2 kW
    Noise level H/M/L 42/36/33 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-22C2/R1IDU
    Cooling capacity 2,2 kW
    Heating capacity 2,5 kW
    Noise level H/M/L 40/35/32 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-36C2/R1IDU
    Cooling capacity 3,6 kW
    Heating capacity 4 kW
    Noise level H/M/L 43/38/35 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-45C2/R1IDU
    Cooling capacity 4,5 kW
    Heating capacity 5 kW
    Noise level H/M/L 43/38/35 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-50C2/R1IDU
    Cooling capacity 5 kW
    Heating capacity 5,6 kW
    Noise level H/M/L 43/38/35 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-56C2/R1IDU
    Cooling capacity 5,6 kW
    Heating capacity 6,3 kW
    Noise level H/M/L 43/38/35 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-63C2/R1IDU
    Cooling capacity 6,3 kW
    Heating capacity 7,1 kW
    Noise level H/M/L 46/39/36 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    Model: NV6-71C2/R1IDU
    Cooling capacity 7,1 kW
    Heating capacity 8 kW
    Noise level H/M/L 46/39/36 dB(A)
    Net Dimension (WxDxH) 1140×575×290 mm
    This product has multiple variants. The options may be chosen on the product page
    View product

  • One way cassette
    1,8 kW
    2,2 kW
    2,8 kW
    3,6 kW
    4,5 kW
    5,0 kW
    5,6 kW
    Model: NV6-18C1/R1-IDU
    Cooling capacity 1,8 kW
    Heating capacity 2,2 kW
    Noise level H/M/L 39/34/31 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    Model: NV6-22C1/R1-IDU
    Cooling capacity 2,2 kW
    Heating capacity 2,5 kW
    Noise level H/M/L 39/34/31 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    Model: NV6-28C1/R1-IDU
    Cooling capacity 2,8 kW
    Heating capacity 3,2 kW
    Noise level H/M/L 39/34/31 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    Model: NV6-36C1/R1-IDU
    Cooling capacity 3,6 kW
    Heating capacity 4 kW
    Noise level H/M/L 40/34/31 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    Model: NV6-45C1/R1-IDU
    Cooling capacity 4,5 kW
    Heating capacity 5 kW
    Noise level H/M/L 42/36/33 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    Model: NV6-50C1/R1-IDU
    Cooling capacity 5 kW
    Heating capacity 5,6 kW
    Noise level H/M/L 42/36/33 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    Model: NV6-56C1/R1-IDU
    Cooling capacity 5,6 kW
    Heating capacity 6,3 kW
    Noise level H/M/L 42/36/33 dB(A)
    Net Dimension (WxDxH) 850×480×235 mm
    This product has multiple variants. The options may be chosen on the product page
    View product
